Uniparker

The versatile system: Independent parking through lifting and shifting technology with pit

Uniparker – a semi-automated parking system – enables independent parking on up to 4 tiers.

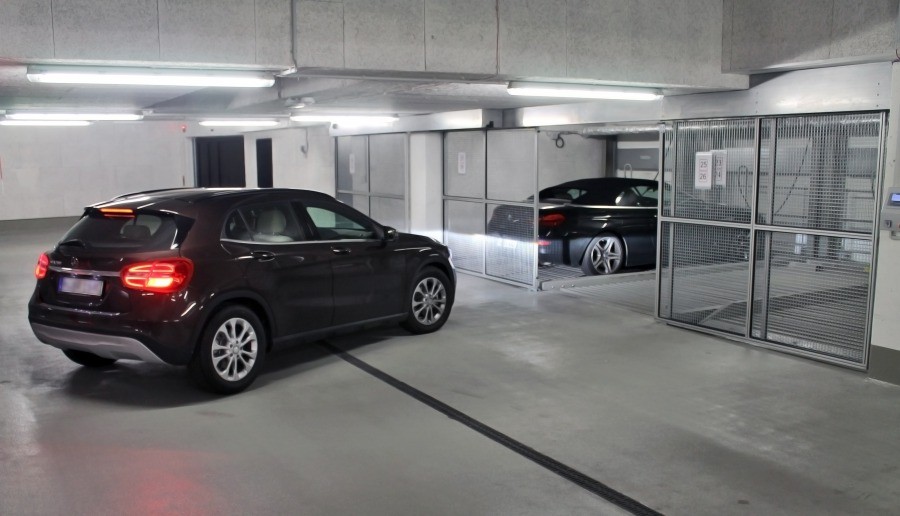

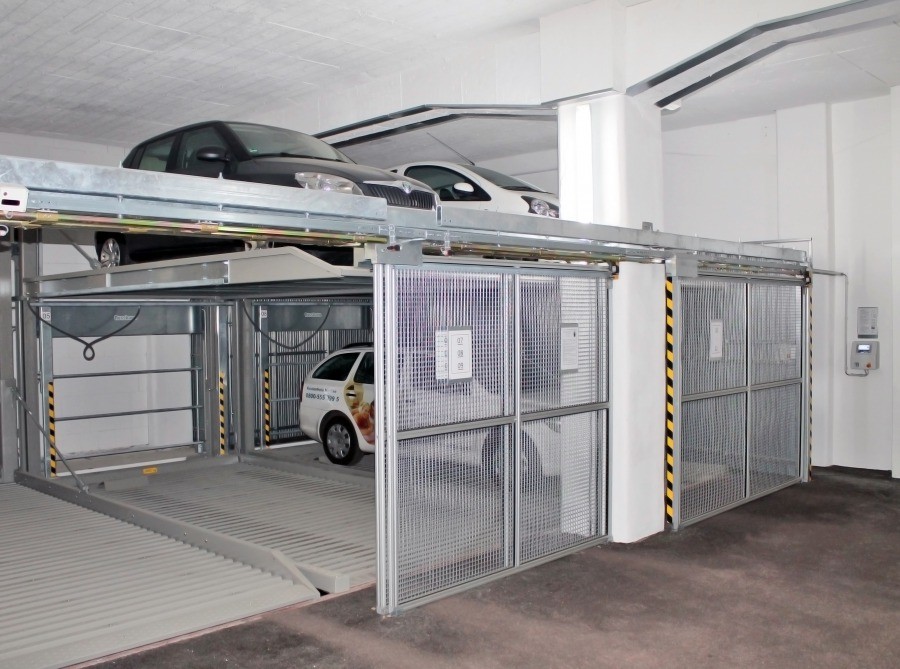

An empty parking space at the desired position is created by lifting, lowering and shifting platforms. Gates at the entrance area provide a maximum level of protection. Beyond security, car drivers will enjoy maximum comfort due to the horizontally accessible platforms and the removal of pillars at the entrance area.

The parking system is most appropriate for indoor car parks used by hotels or office buildings as well as in residential areas.

Product variants


Uniparker N5202

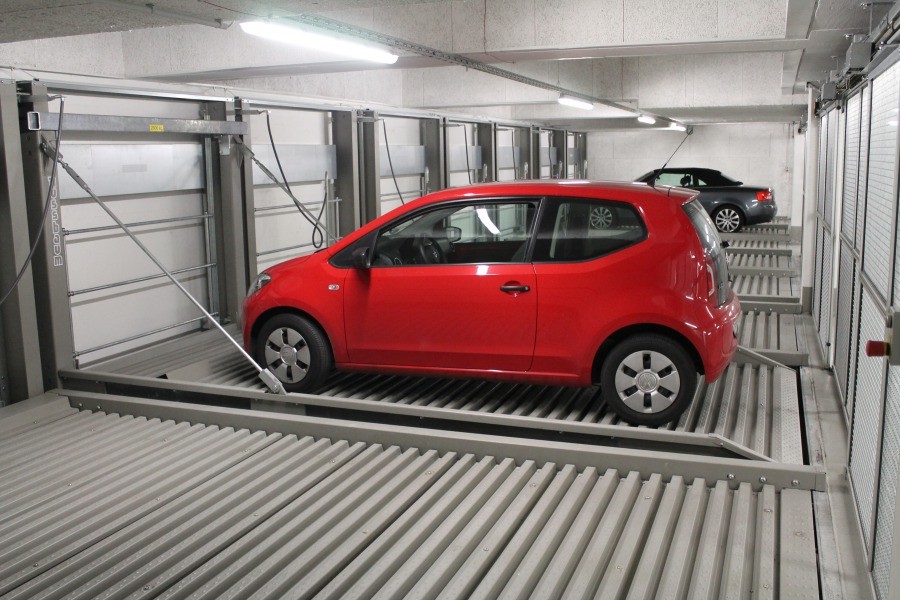

Independent and semi-automated parking on 2 tiers without pillars at the front. Lifting platforms are used on the lower tier and shifting platforms at the entrance level.



pit depth

clear height

car height lower tier

car height upper tier

from 175 cm 220 cm 150 cm 195 cm
to 230 cm 250 cm 205 cm 225 cm

Uniparker N5303

Independent and semi-automated parking on 3 tiers without pillars at the front. Lifting platforms are used on the lower as well as upper tier and shifting platforms at the entrance level.



pit depth

clear height

car height lower tier

car height middle

car height upper tier

from 175 cm 325 cm 150 cm 150 cm 150 cm
to 230 cm 375 cm 205 cm 205 cm 150 cm

Uniparker N5403

Semi-automated parking on 3 tiers, with 2 tiers below ground level. Lifting platforms are used on the lower tier whereas a combination of lifting and shifting platforms is used at the middle tier and shifting platforms only at the entrance level (upper tier). 2 empty parking spaces are required for each parking system.



pit depth

clear height

car height lower tier

car height middle

car height upper tier

from 370 cm 210 cm 152 cm 152 cm 185 cm
to 450 cm 250 cm 192 cm 192 cm 225 cm

Uniparker N5404

Independent and semi-automated parking on 4 tiers with pit used for the lowest tier. At the lower tier a combination of lifting and shifting platforms is installed whereas shifting platforms are used at the entrance level and lifting platforms for the both upper tiers. 2 empty parking spaces are required for each parking system. The parking is not only suitable for sedans but SUVs too.



pit depth front / rear

clear height

car height lower tier

car height middle

car height upper tier

from 210 cm 530 cm 150 cm 150 cm 150 / 150 cm
to 260 cm 680 cm 200 cm 200 cm 200 / 200 cm

Features


  • Semi-automated parking system using intelligent shifting technology
  • Independent parking (any vehicle can be retrieved without moving another vehicle)
  • Modular segments to fit to your parking needs
  • Variable car height (between 150 cm and 205 cm) according to the available clear height and pit depth
  • Maximum parking convenience
  • Reduced collision risk when parking a car due to the removal of pillars at the entrance area
  • Width of parking space between 230 cm and 270 cm
  • Platform capacity of up to 2.6 t

Projects


Maximum utilization of the available parking space at the office building LaCour in Düsseldorf

Convenient living in the centre of Cologne - without searching for a free parking slot

Maximum utilization of the available parking space in the courtyard of a residential building in Munich (Gärtnerplatz)

Providing additional parking space in the underground car park of a residential- and office building in Cologne
