Parkline

The intelligent system: Independent parking without pit

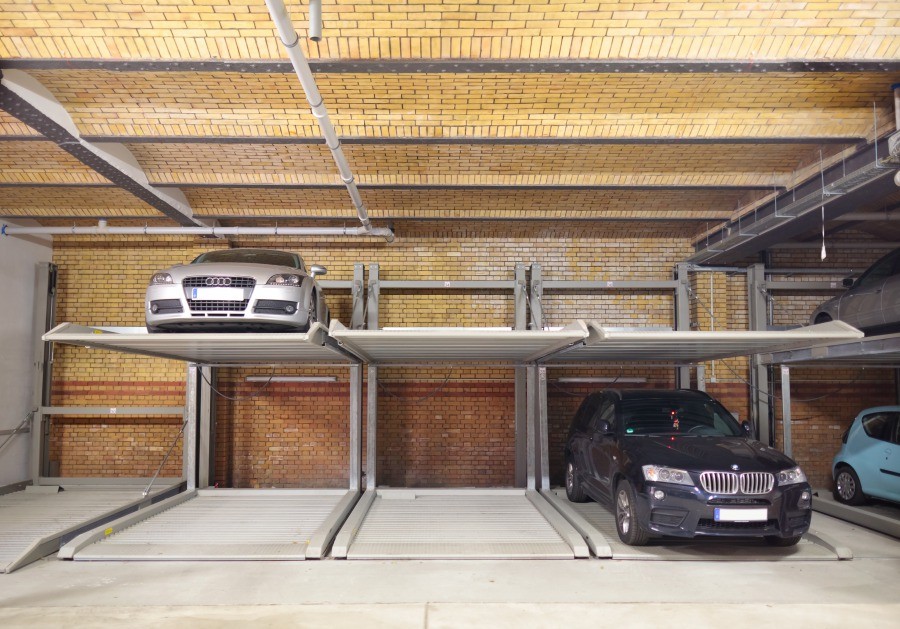

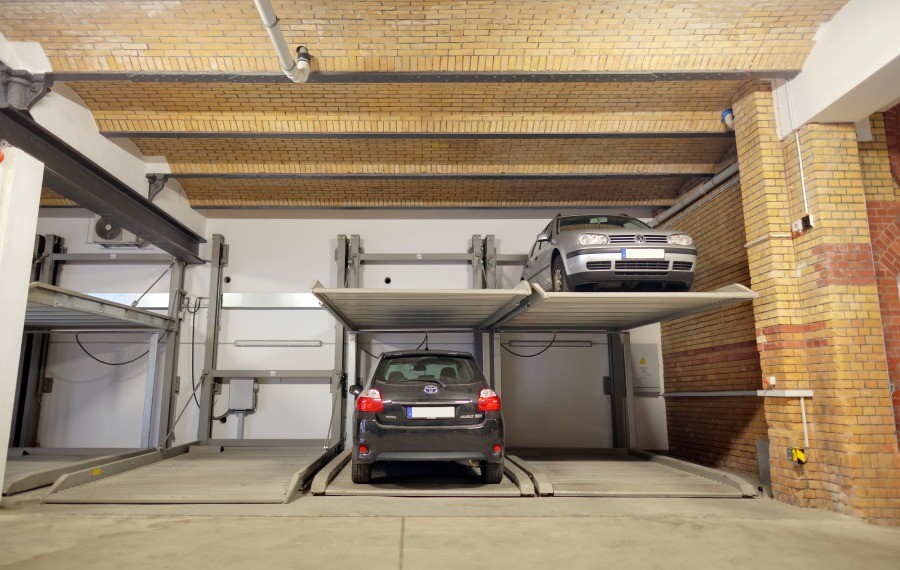

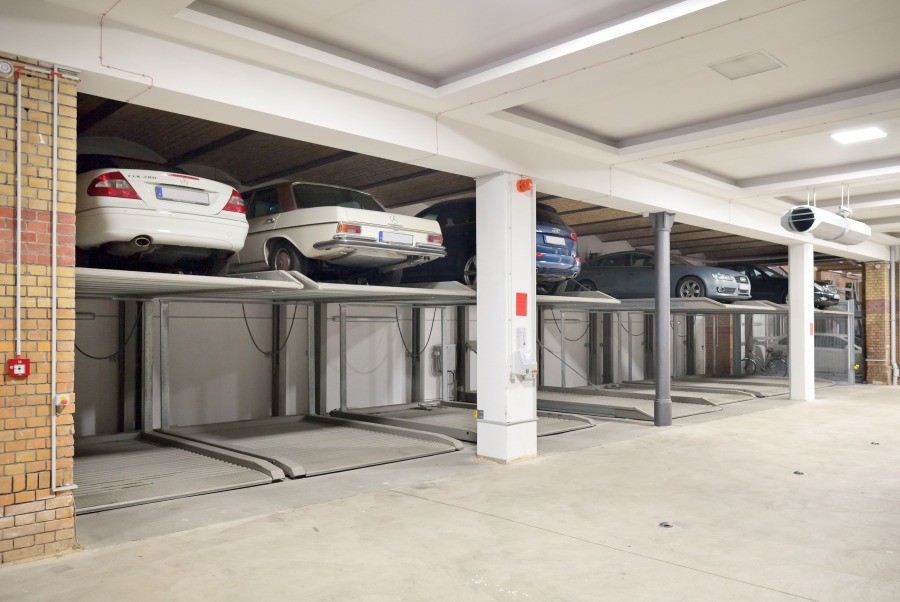

The “Parkline” solution is a semi-automated parking system without a pit, enabling flexible and independent parking. An empty parking space at the upper tier will be created by lifting and sliding platforms.

Horizontally accessible platforms and the removal of pillars at the entrance area provide maximum convenience to car drivers. Moreover, gates at the upper tier increase security while reducing the risk of vandalism.

Parkline is the ideal car parking system for residential buildings and hotels as well as for the automotive business.

Product variants


Parkline N5102

Independent parking on 2 tiers with clear height starting from 330 cm, no pit required as well as no pillars at the entrance area



clear height

pillar height

car height lower tier

car height upper tier

from 330 cm 320 cm 150 cm 150 cm
to 490 cm 480 cm 210 cm 250 cm

Parkline N5803

Independent parking on 3 tiers with clear height starting from 540 cm, no pit required.



clear height

pillar height

car height lower tier

car height middle

car height upper tier

from 540 cm 440 cm 150 cm 150 cm 150 cm
to 660 cm 560 cm 190 cm 190 cm 190 cm

Features


  • Semi-automated parking system using intelligent shifting technology
  • Modular segments to fit to your parking needs
  • Variable car height (between 150 cm and 250 cm) according to the available clear height

  • Maximum parking convenience
  • Reduced collision risk when parking a car due to the removal of pillars at the entrance area
  • Width of parking space until 270 cm
  • Platform capacity of up to 2.6 t

Projects


Providing comfort and efficiency - with our parking system Parkline N5102 at an office building in Hamburg

Convenient parking in the underground car park of an office building in Haveholmen, Copenhagen

Additional parking space for up to 26 vehicles was created within the inner circle of Moscow
